Product Overview

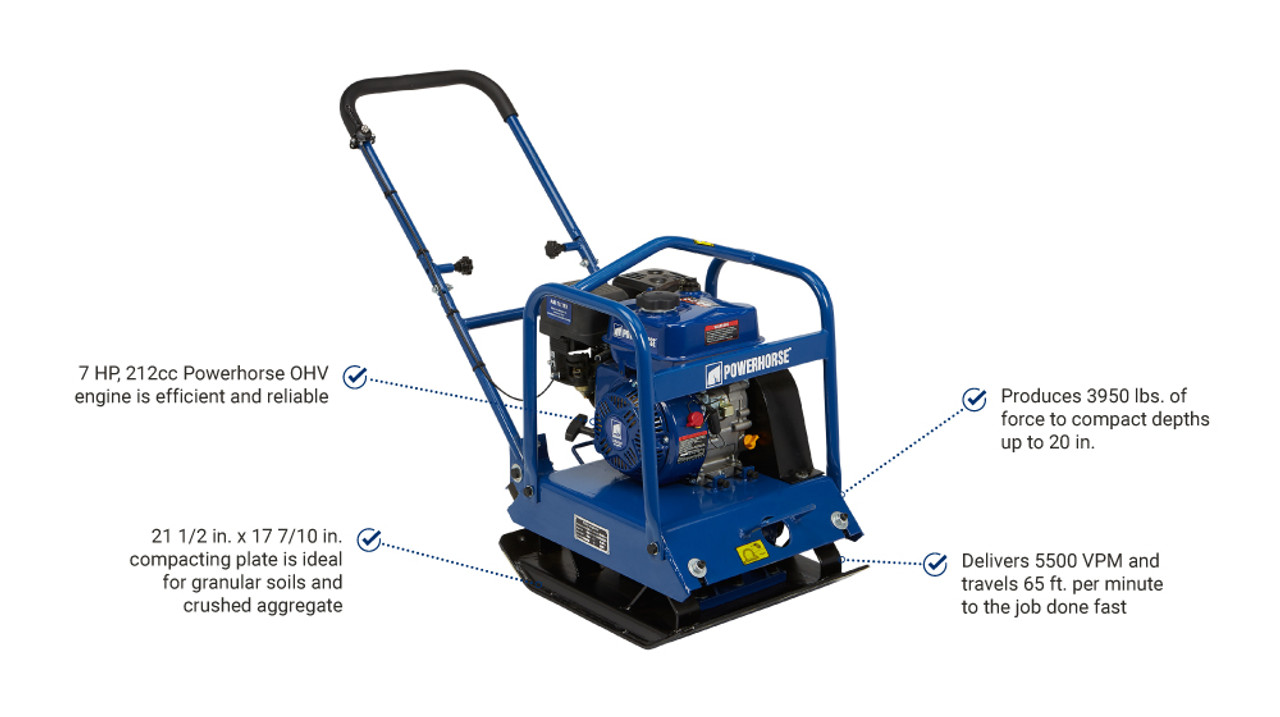

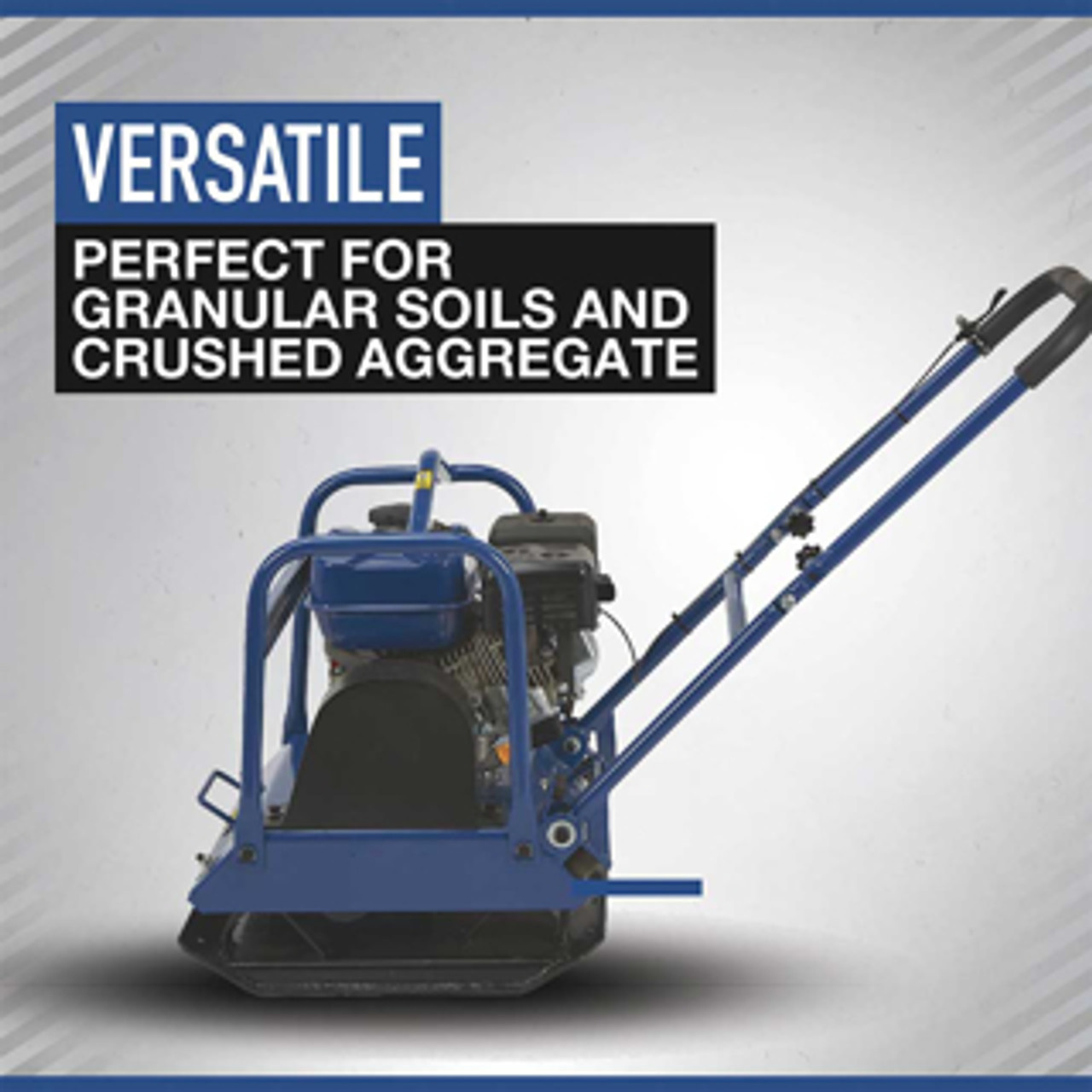

The Powerhorse single-direction plate compactor is designed to compact granular soils and crushed aggregate. A Powerhorse 212cc OHV engine powers the 21 1/2-in. x 17 7/10-in. compacting plate.
Features and Benefits
- Compaction force of 3,950 lbs.
- Delivers 5,500 VPM
- 65 feet per minute travel speed
- Float-type carburetor for uninterrupted operation
- Centrifugal flyweight-type governor for consistent speed
- Low oil shutdown turns off the engine if it runs low on oil, preventing serious damage or failure
- Side airports limit the entry of debris
- Lift and protect guard applied
- Sealed belt cover for clutch and belt protection
- Rated 4.1 kW at 3,600 RPM
Product Specifications
| Equipment Type | Plate Compactor |
| Compaction Depth (In.) | 20 In. |
| Compaction Force (Lbs.) | 3,950 Lbs |
| Displacement | 212cc |
| Dry Weight | 198 Lbs |
| Engine Brand | Powerhorse |
| Horsepower | 7 |
| Plate Size L x W (In.) | 21-1/2 In. X 17-7/10 In. |
| SKU | 52313.POW |
| Travel Speed | 65 Ft/min |
| Vibration Frequency Hz (VPM) | 5500 Vpm |
| Warranty | 1 Year Limited |
