Product Description

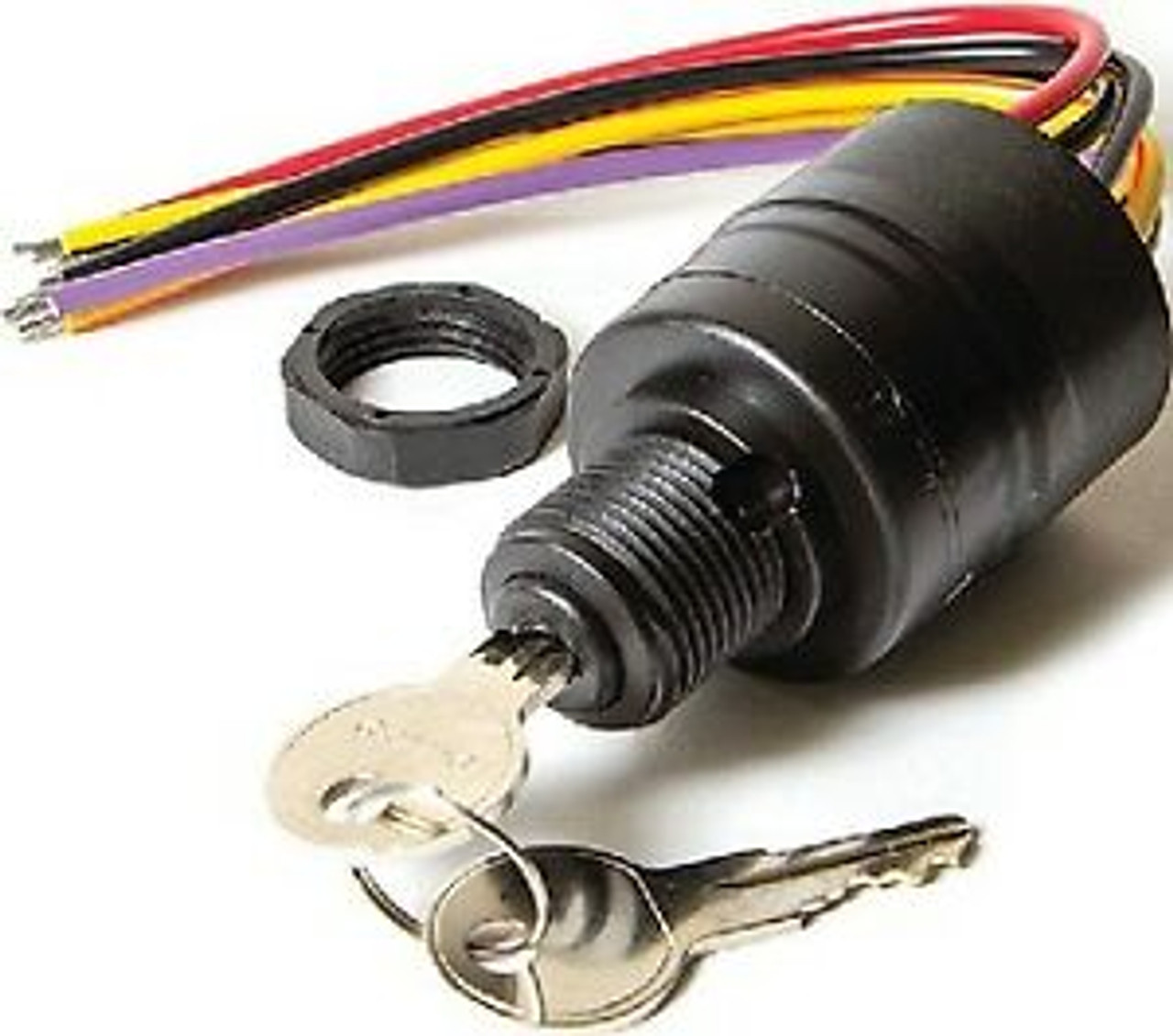

Ignition Switch
Mercury 87-17009a 2, 8717009a2, 17009a2, 87-17009A5, 17009A5
Sierra MP41070-2
Key Features:
- Push to choke
- Maximum corrosion protection - eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
Additional Details:
- Back Up Nut: Brass
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Short: 5/8" maximum panel thickness
- Material: Marine grade glass-filled Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Uses 6 wiers factory color code
- Switch Positions: Off - Run - Start
- Type: 3 Position Magneto
